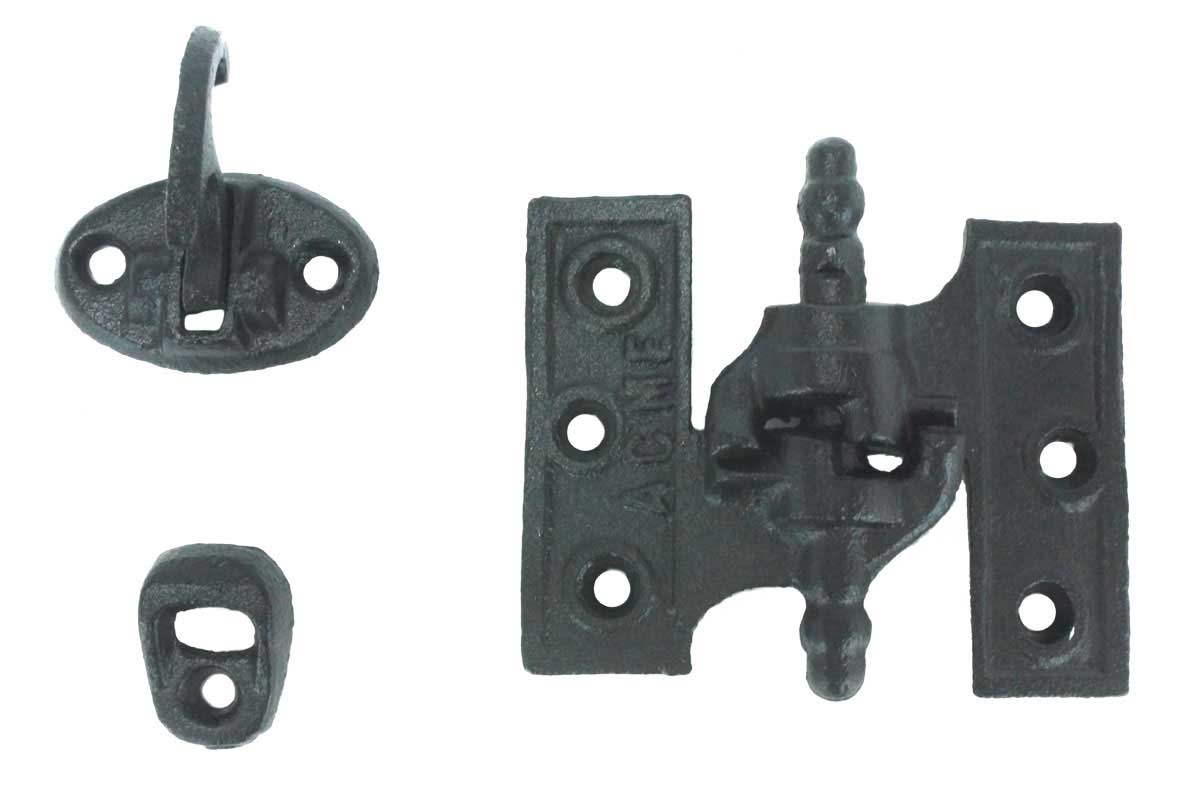

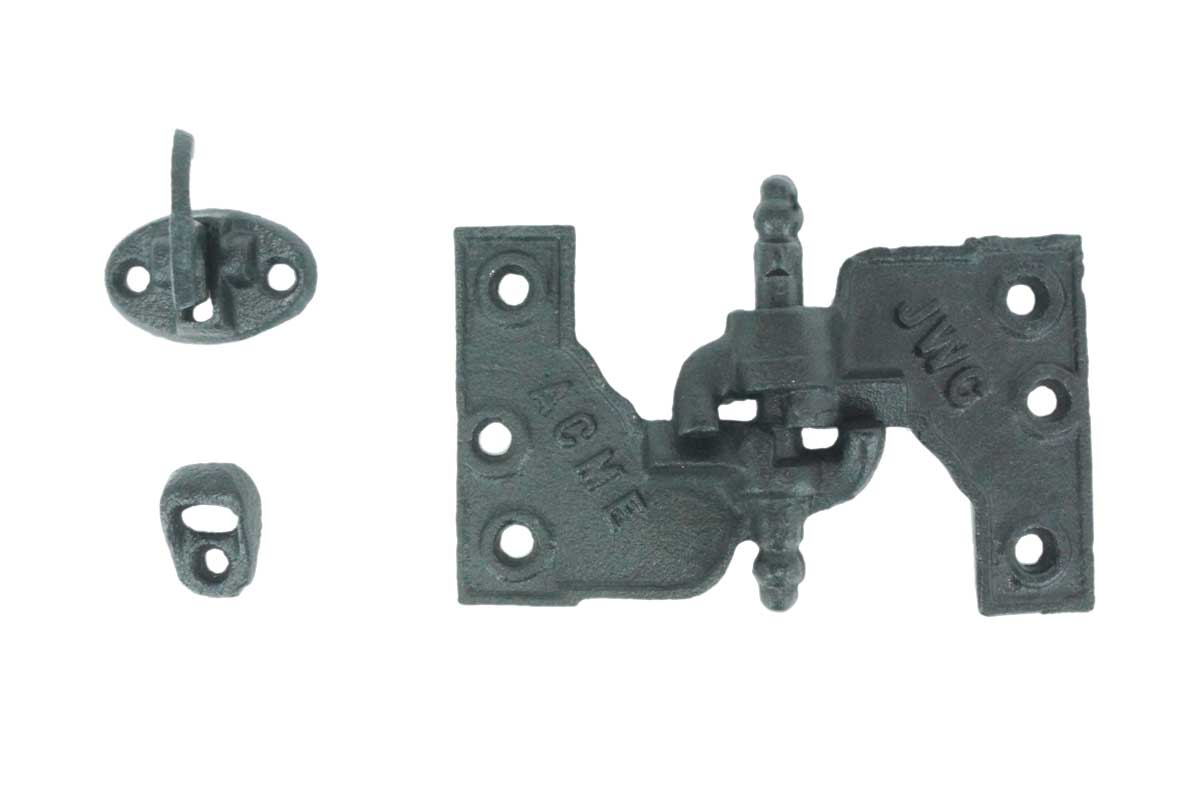

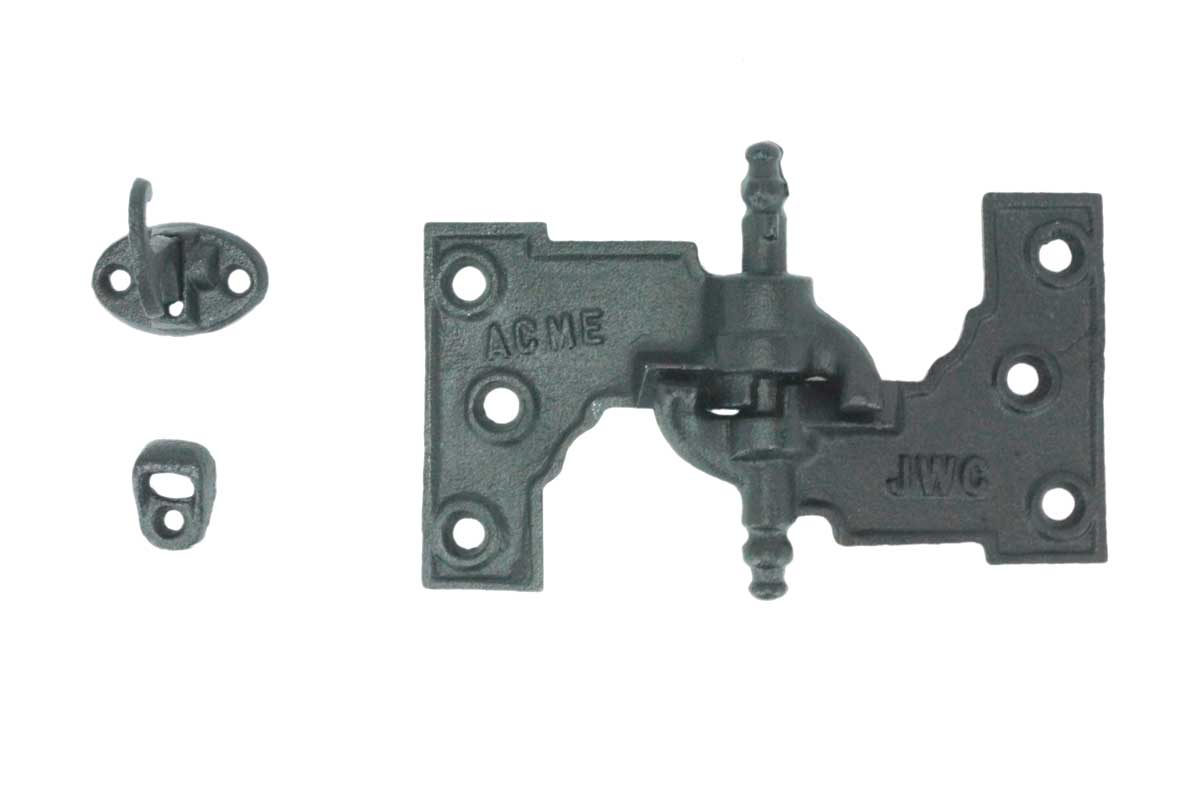

Acme Mortise Shutter Hinges - WeatherWright Coated - Multiple Sizes Available - Cast Iron - Sold as Set

John Wright Company

$ 39.94
SKU: JW-088372PCR

Share:

These Acme Mortise Shutter Hinges (also called Acme, Lull & Porter - ALP) are the original design and an exact fit for most old hinges of the same type, and can be removed completely without tools. They are available in a wide variety of sizes, and have a WeatherWright™ coating, making them resistance to the elements.

Product Specifications:

  • Acme Mortise Shutter Hinges
  • Material: Cast Iron
  • Finish: WeatherWright™ Powder Coated
  • Resist the elements and are ready to install–no primer or painting required

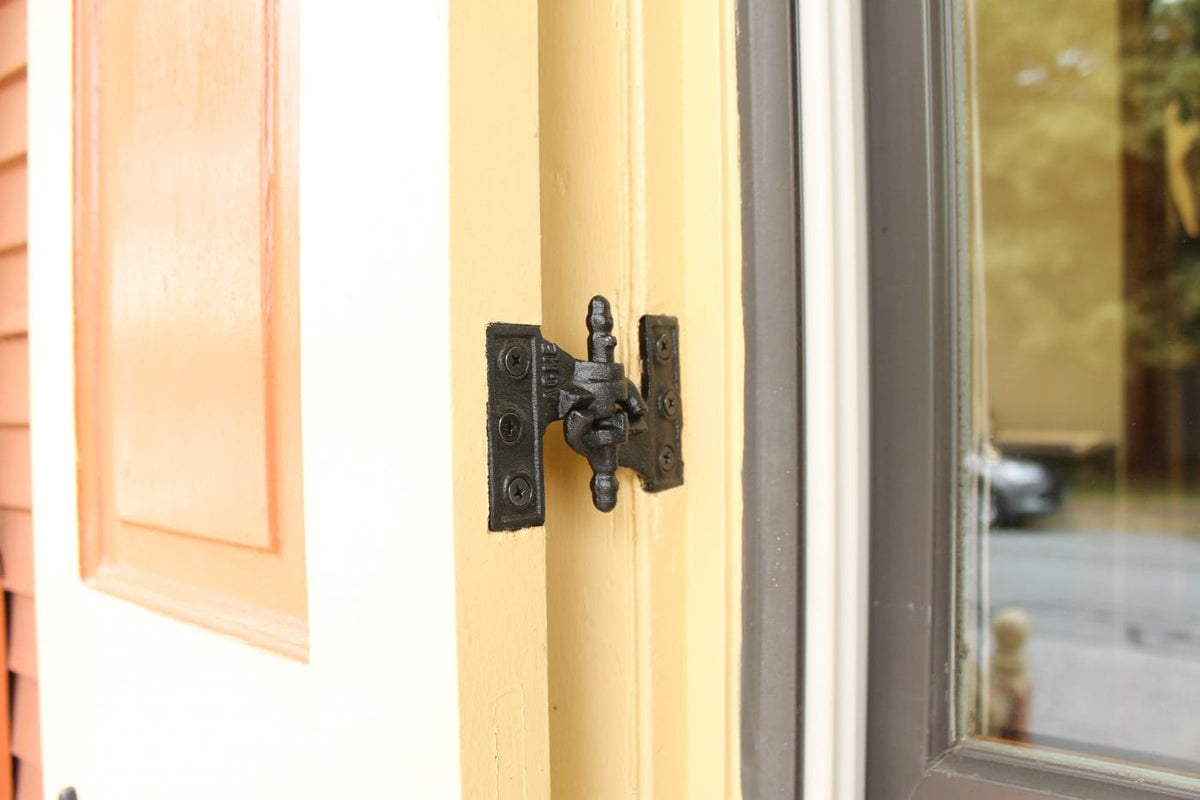

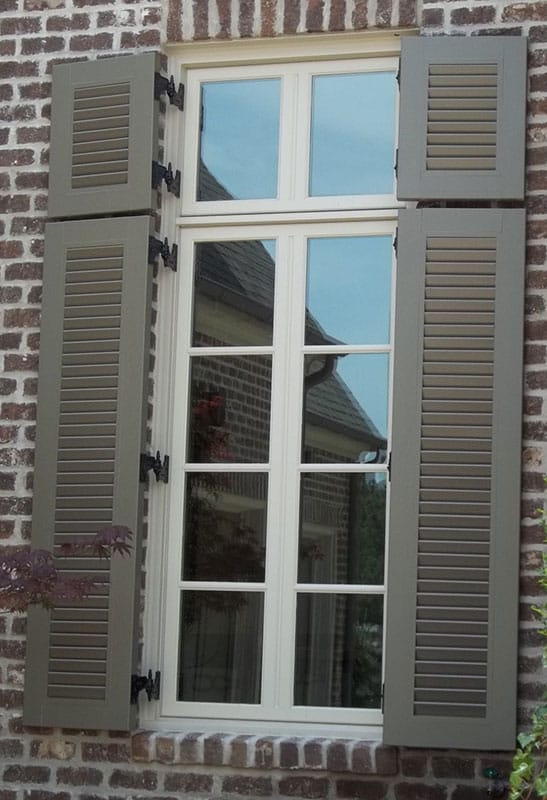

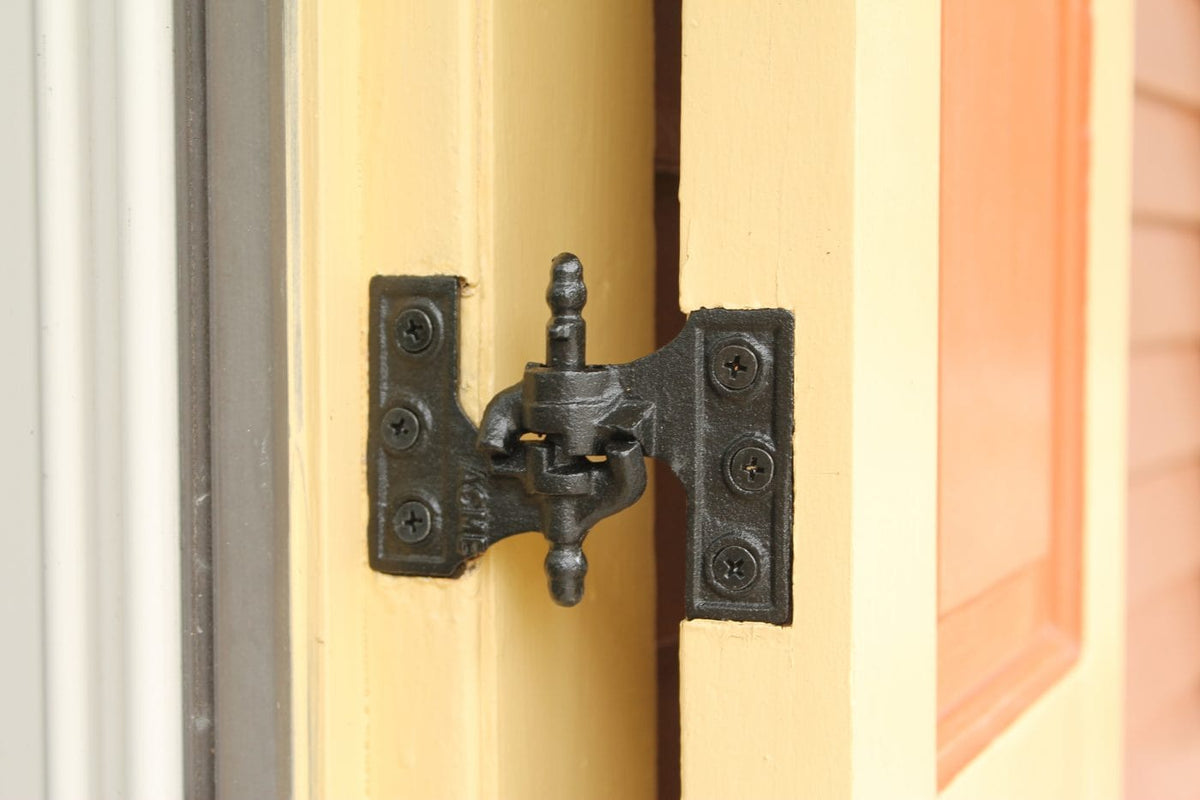

  • Mortised into the edge of the shutter and window casing
  • This is the original design and an exact fit for most old hinges of the same type
  • Once-patented cam system locks the hinge in the open position
  • Shutters lift off without tools
  • Sold as Set - Each set contains 2 left-hand hinges, 2 right-hand hinges, and 2 sets of fasteners — enough shutter hardware to complete one window
  • Additional Screws but can be purchased separately
  • Shutter weight calculated using 2 hinges per shutter, with maximum width, height, and weight as shown in table below
  • Sizes Available:
    # Throw Offset Width a b Max. Width Max. Height Max. Weight
    88-372 1-3/8" 11/16" 3-1/8" 7/8" 2-1/2" 24" 60" 25 lb.

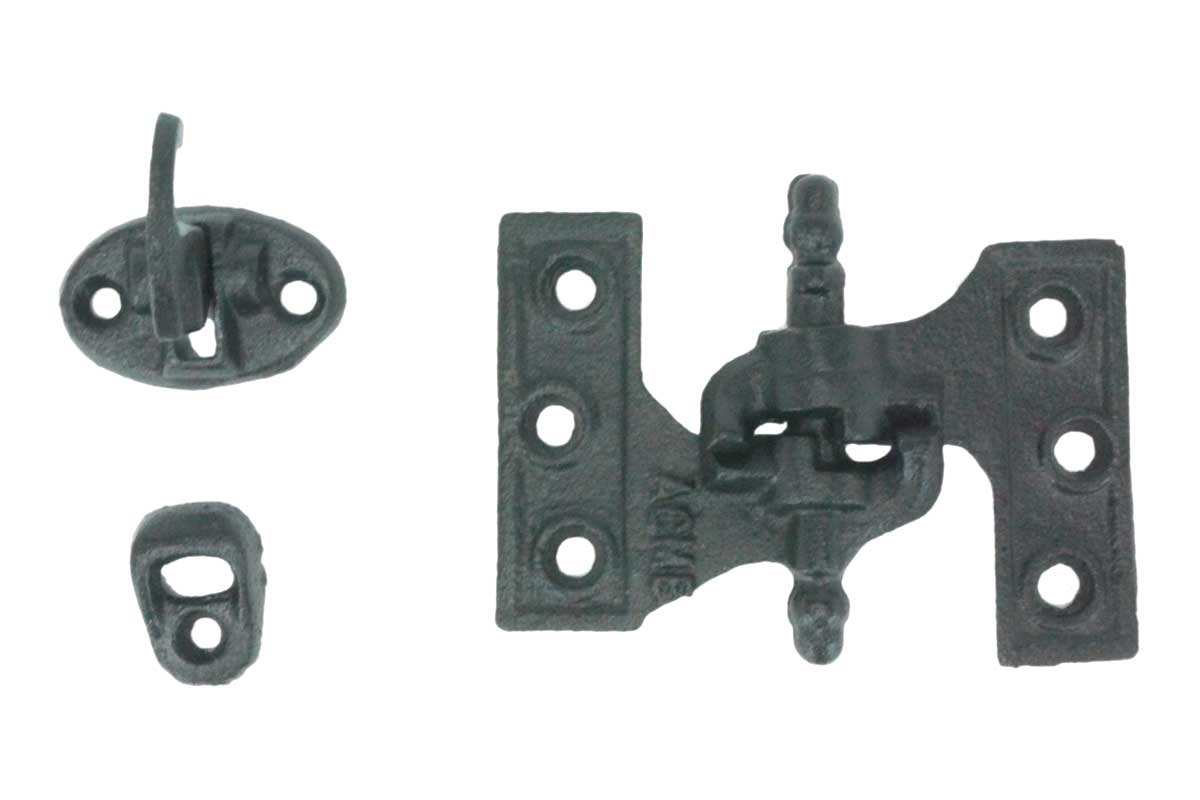

    88-373 2" 1" 3-3/4" 7/8" 2-1/2" 24" 60" 25 lb.

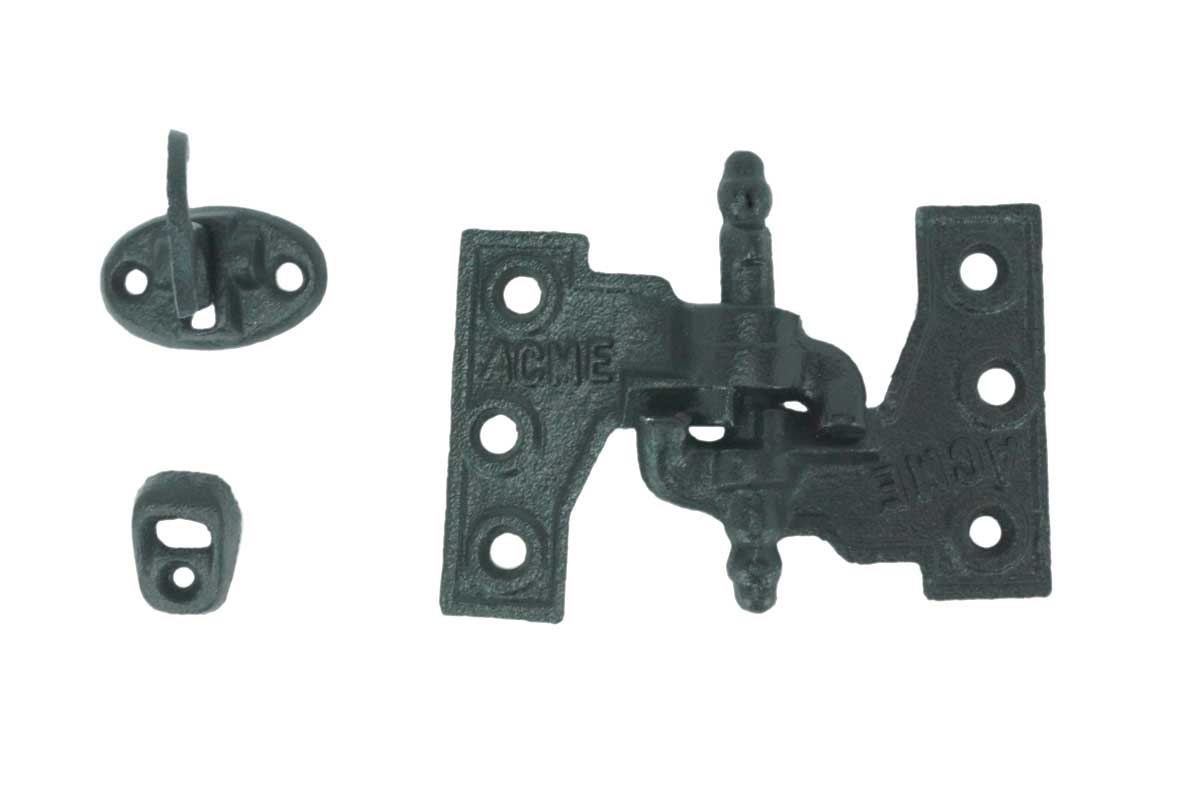

    88-374 2-1/2" 1-1/4" 4-1/2" 15/16" 2-7/8" 24" 60" 50 lb.
    88-375 3-1/8" 1-9/16" 5" 15/16" 3" 24" 60" 50 lb.

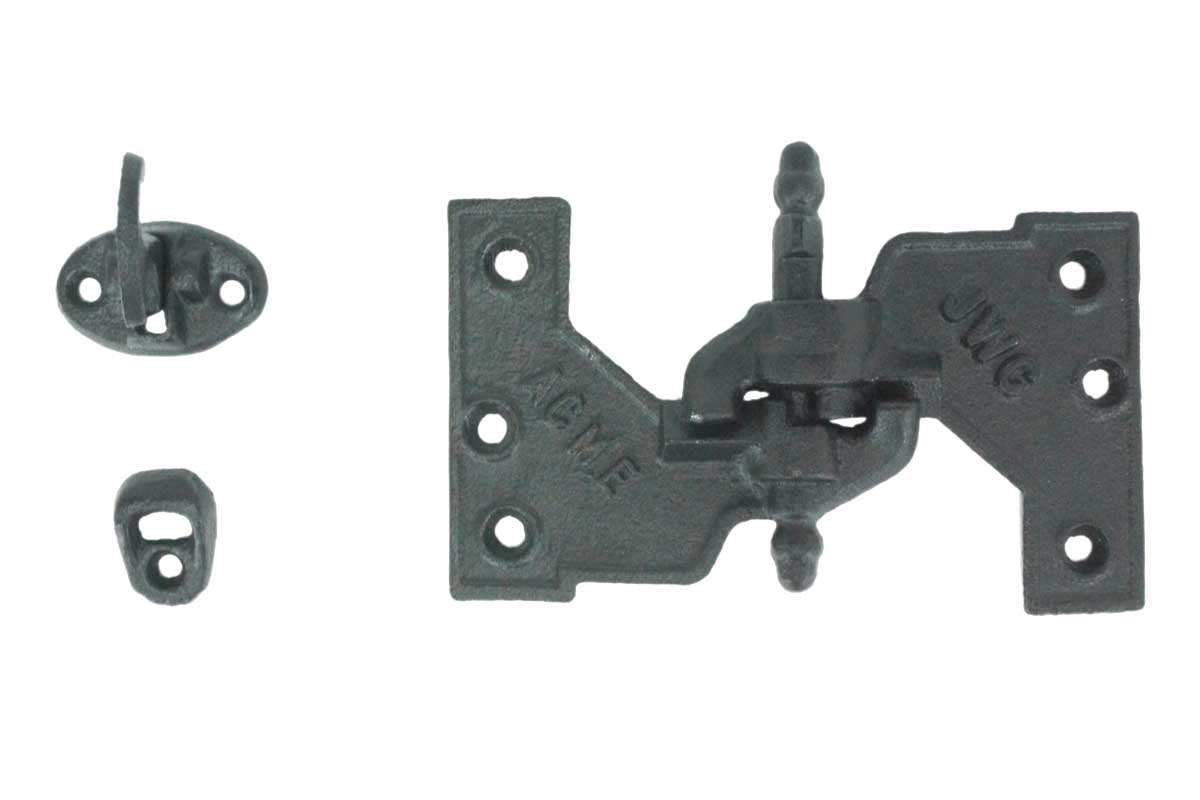

    88-376 3-5/8" 1-13/16" 5-1/2" 1" 3-1/8" 24" 60" 50 lb.
    88-377 4-1/4" 2-1/8" 6-1/2" 1-1/8" 3-1/2" 24" 60" 75 lb.

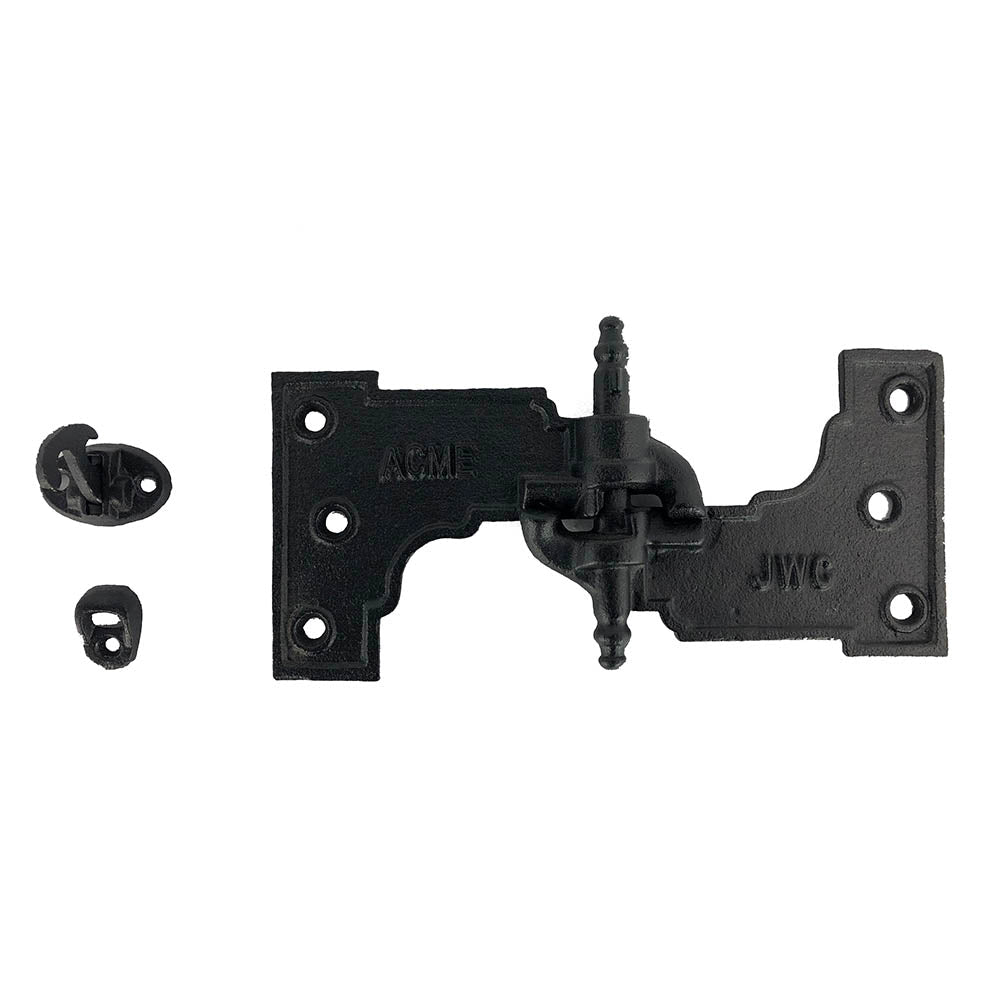

    88-378 5-1/2" 2-3/4" 9" 1-1/2"  4" 24" 60" 75 lb.
