Clearance - Interconnected Entrance Lockset/Deadbolt - Jhil Grade 2 - Single Locking

Clearance - On Sale for 50% Off. ALL SALES ARE FINAL. THESE ITEMS ARE NON-REFUNDABLE.

Product Specifications:

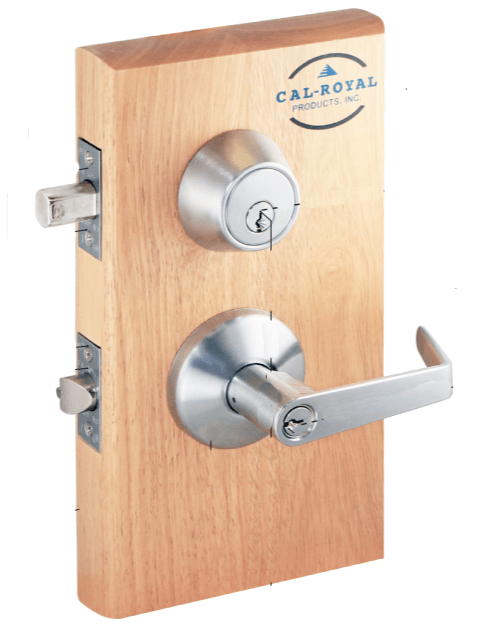

• JHIL Series Grade 2, Single Locking Interconnected Entrance Lever Set

• Entrance, Single Locking - Deadbolt thrown or retracted by key in upper lock from outside or by inside turn unit. Latch bolt retracted by lever from either side. Lever retracts deadbolt and latch bolt simultaneously for immediate exit

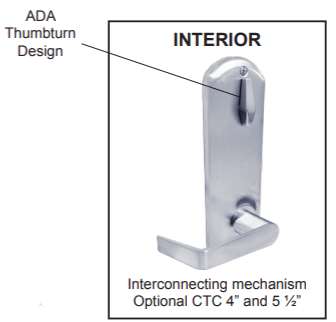

• Simultaneous retraction on both latch and deadbolts from inside by turning the lever in a panic-proof exit situation. Top lock is heavy duty deadbolt with the bottom lock having a cylindrical body. High security with a double locking point using the keyed lock function.
• ANSI Standards: Meet ANSI A 156.12 Series 5000 Grade 2 Requirements
• Cylinder & Keyway:  6 pin solid brass “C” keyway, Schlage E, Schlage C-K,
• Interchangeable Core: Not Available
• Large Format Interchangeable Core: Interchangeable Core Locks for Schlage
• Housing: Steel and Zinc dichromate finish for rust resistance
• Strikes: Standard “T” strike furnished with lockset. 2 ¾” x 1 ⅛” square strike with deadbolt
• Escutcheon: 9 3/16” x 3 3/16” brass plated. Packed with interior escutcheon. Optional external escutcheon available.
• Functions: Entrance, Classroom, Storeroom and Dummy available upon request.
• Deadbolt:  1” Throw. Adjustable 2 ¾” or 2 ⅜” Brass with hardened steel pin. Standard 2 ¼” x 1” face plate, packed with ⅛” plastic filler for 1 ⅛” door prep.
• Latch Bolt: ½” Throw. “UL” Listed for 3 hour doors. 2 ¾” standard backset with 2 ⅜” optional.
• Latch Faceplate: Standard 2 ¼” x 1” face plate, packed with ⅛” plastic filler for 1 ⅛” door preparations.

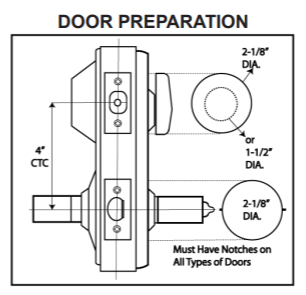

• Door Range:  1 ⅜” – 1 ¾”
• Lever Length: 4 ¼”
• Meets ADA requirements Specially designed for Barrier Free Application Conforms with ANSI A156.12 Series 5000, Grade 2 Exceeds 400,000 cycles
• Template
• Installation Guide

Product Options:

• Finishes Available: Polished Brass

• Backset: 2-3/4" or 2-3/8" Available
• Function: Entrance, Classroom, Storeroom and Dummy
