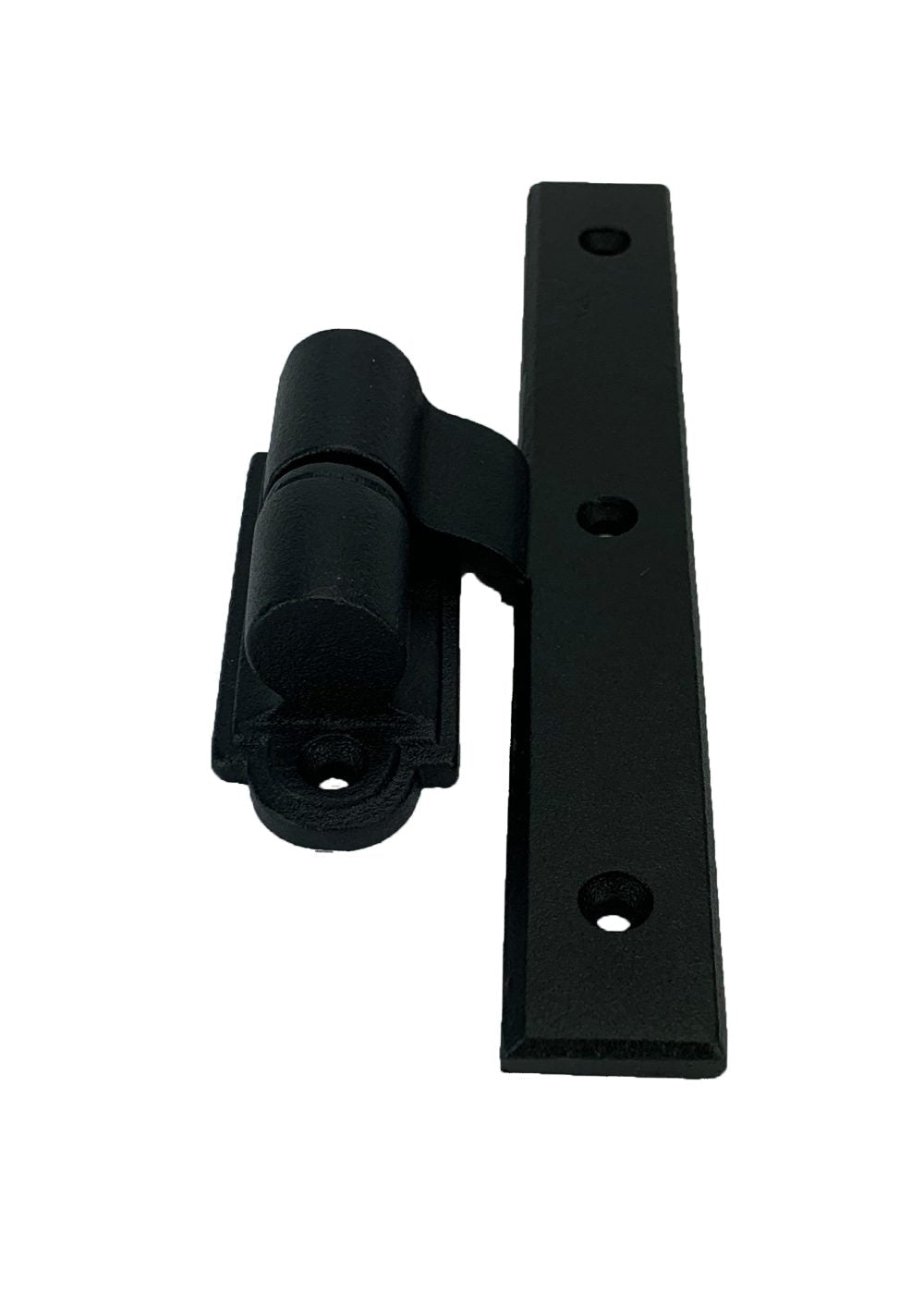

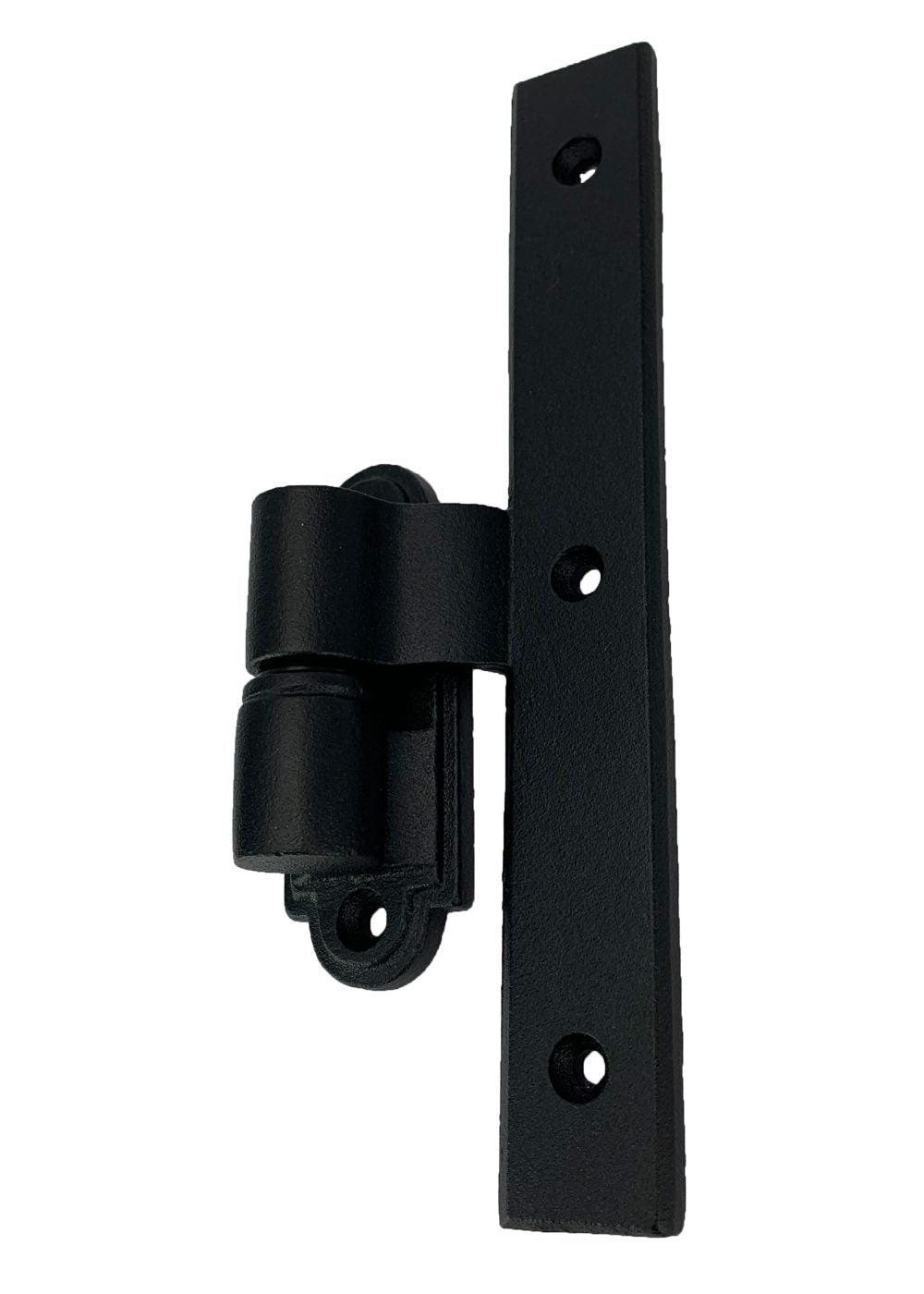

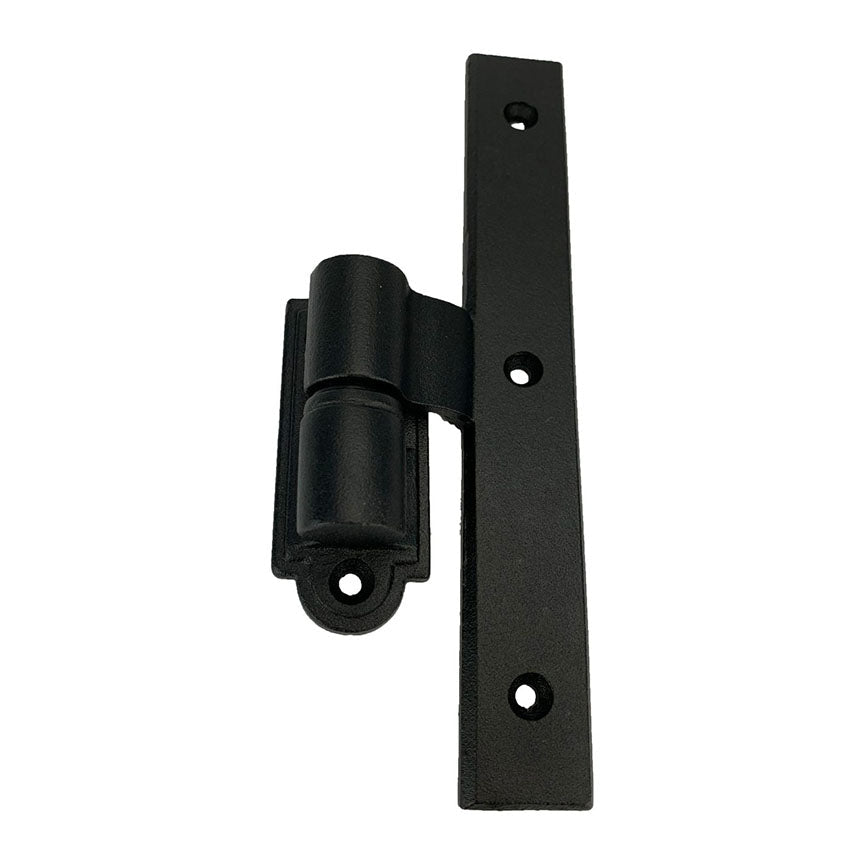

L Style Shutter Hinges - Mid Range Hinge - 3/4" Inch Offset - Cast Iron - Black Powder Coat - Sold Individually
These L Style (also called New York Style) Mid Range Shutter Hinges have a 3/4" offset on the hinge and pintle. They are made of cast iron and have a black powder coat finish.
- L Style Mid Range Shutter Hinges
- 3/4" Inch offset on hinge and pintle
- Size: 7" Inch × 3-1/2" Inch × 1" Inch
- Material: Cast Iron
- Finish: Black Powder Coat
- Pintle pin diameter is .375"
- Generally used with the 088535 3/4″ Offset NY Style Hinge set for large or heavy shutters
- Click here for L Style Shutter Hinges - NY Style Set - 3/4" Inch Offset
- NOTE: Not for use with 88-510, 88-512 or 88-514 L Style/New York Hinges
- Complete with ( 6 ) # 8 x 1" flat head screws
- Sold individually
- Installation Guide and Specs
- General Shutter Hardware Installation Details
