New York Shutter Hinge Pintle - Multiple Offsets Available - Cast Iron - Black Powder Coat Finish - Sold Individually

$ 5.51

SKU: JW-088538

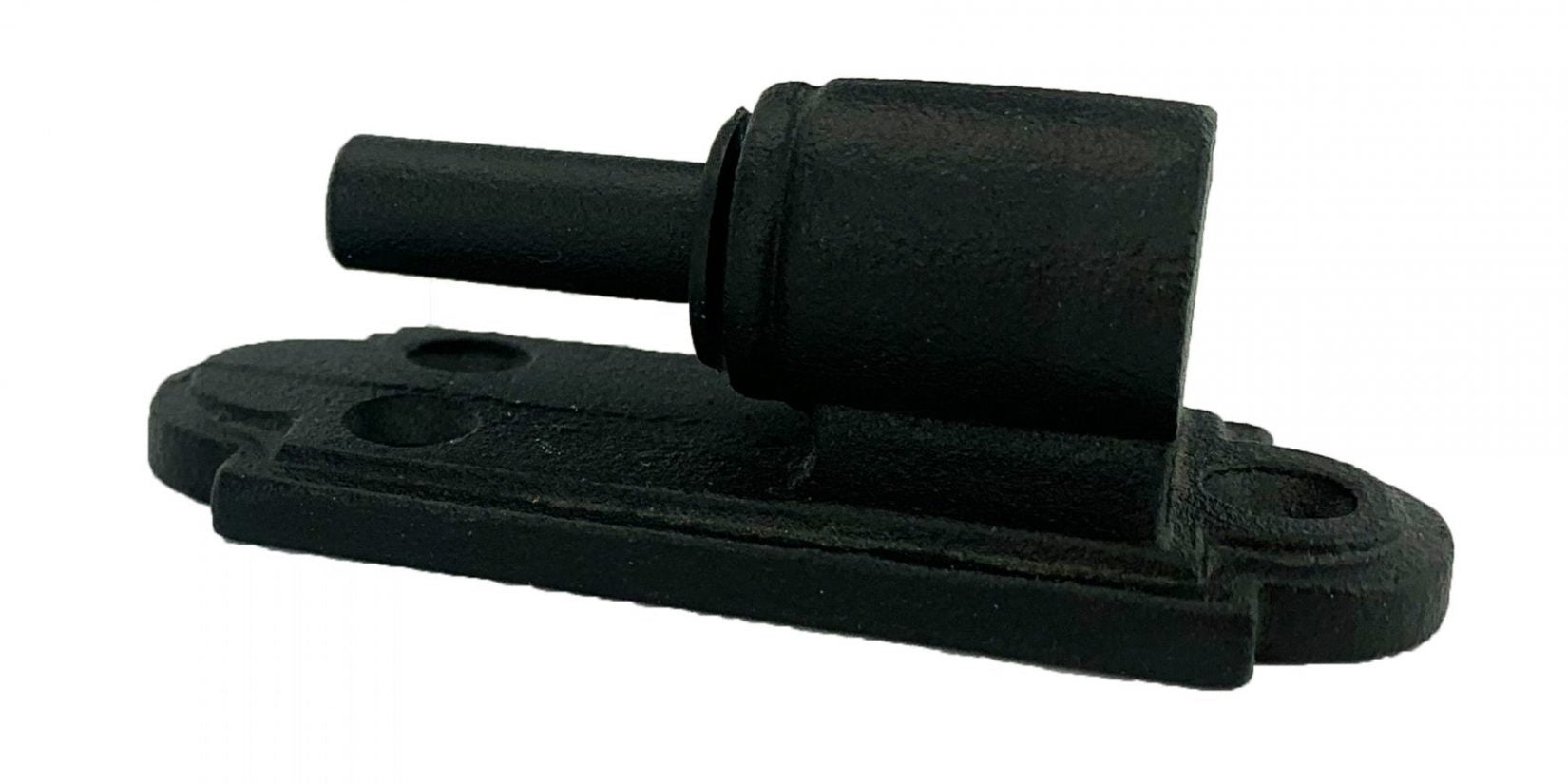

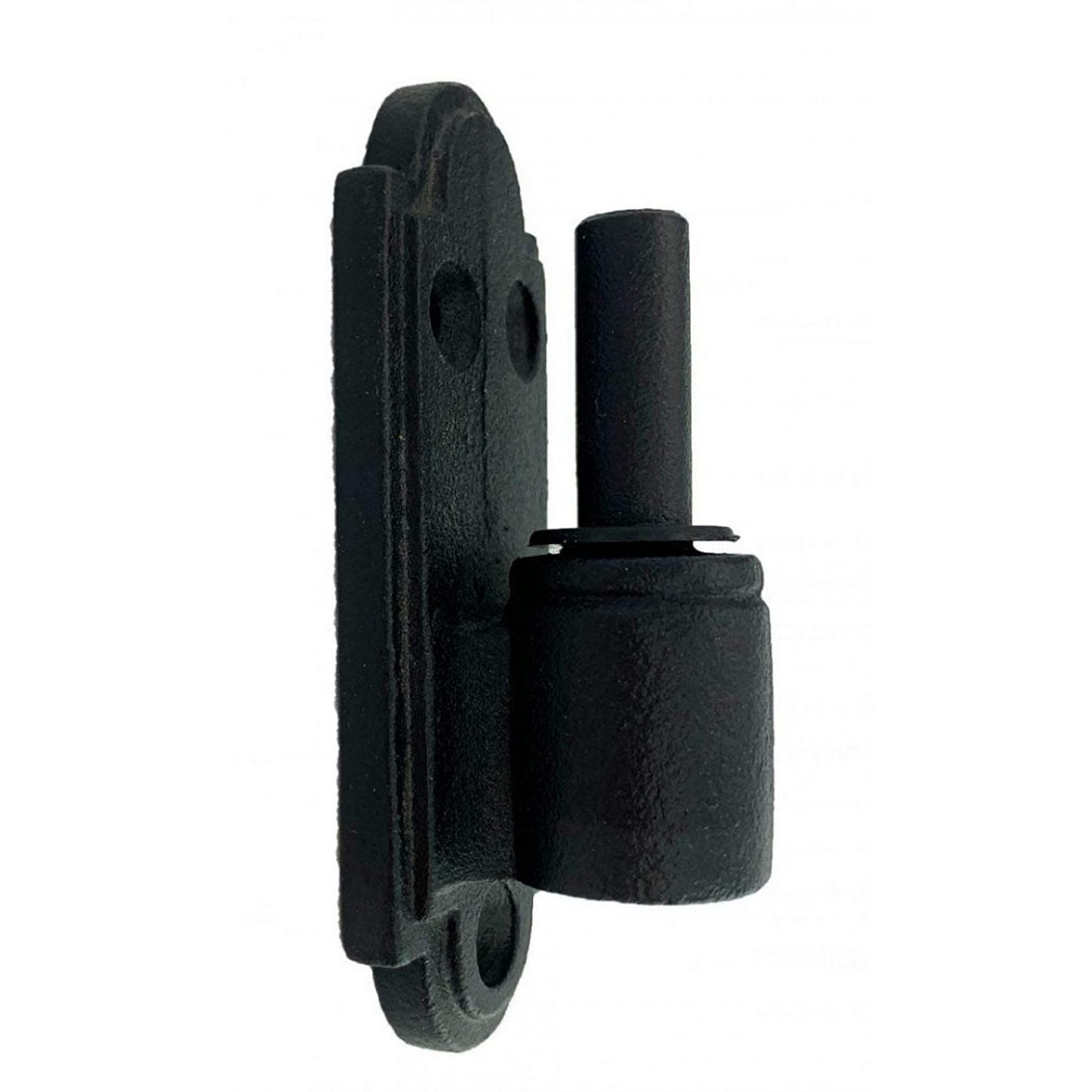

These New York Shutter Hinge Pintles can be used with any New York style or mini strap hinge. There are available with offsets of 3/4" Inch, 1-1/2" Inch, 1.875" Inch, or 2-1/4" Inch. The pintles are made of cast iron and have a black powder coat finish.

Product Specifications:

New York Style Shutter Hinge Pintle
Can be used with any New York Style shutter hinge or mini strap hinge
Material: Cast Iron
Finish: Black Powder Coat
.375" Pin Diameter
Offsets Available:

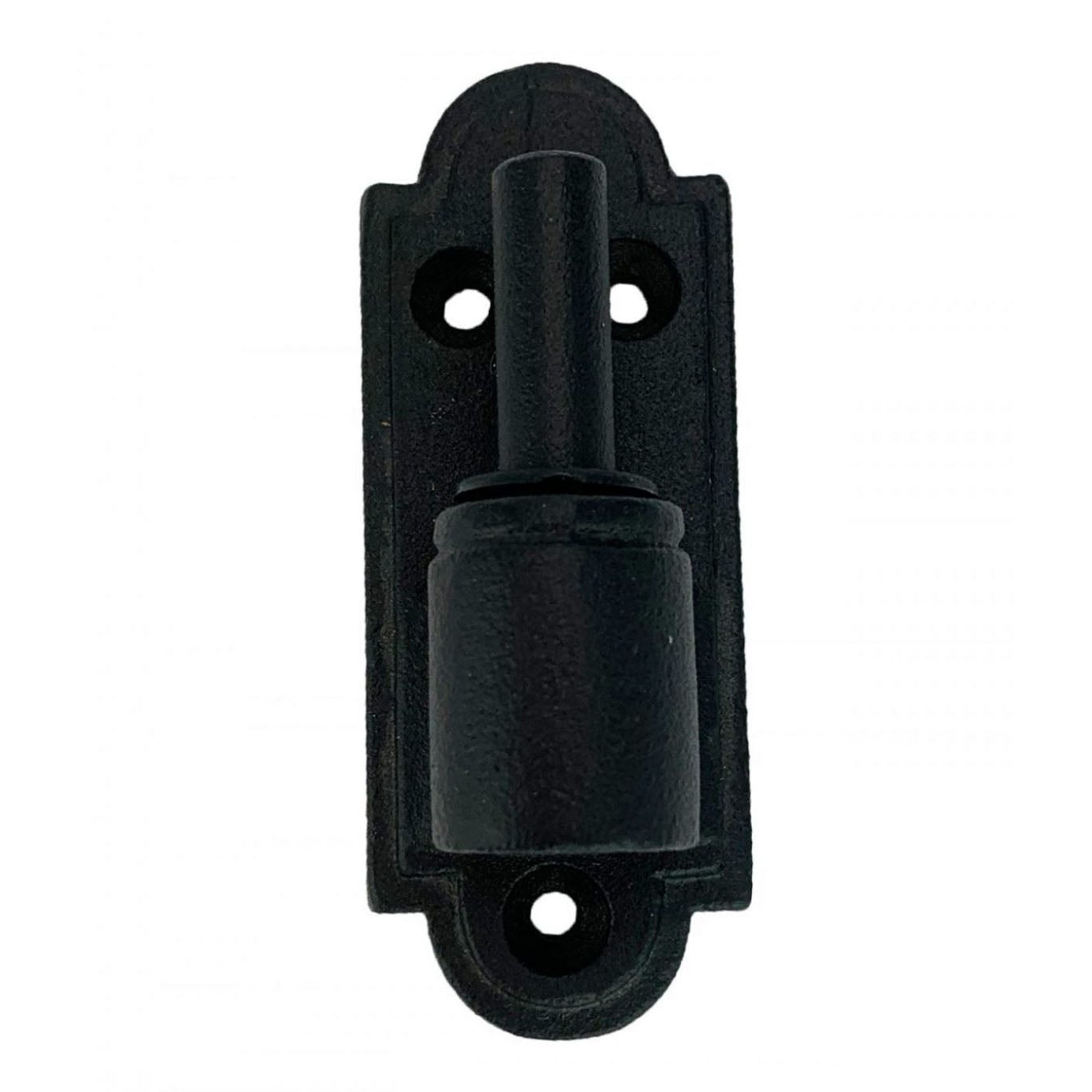

3/4" Inch Offset

Generally used with the 088535 ( 3/4″ Offset NY Style hinge)
Dimensions: 3.375" × 1.25" × 1.25"

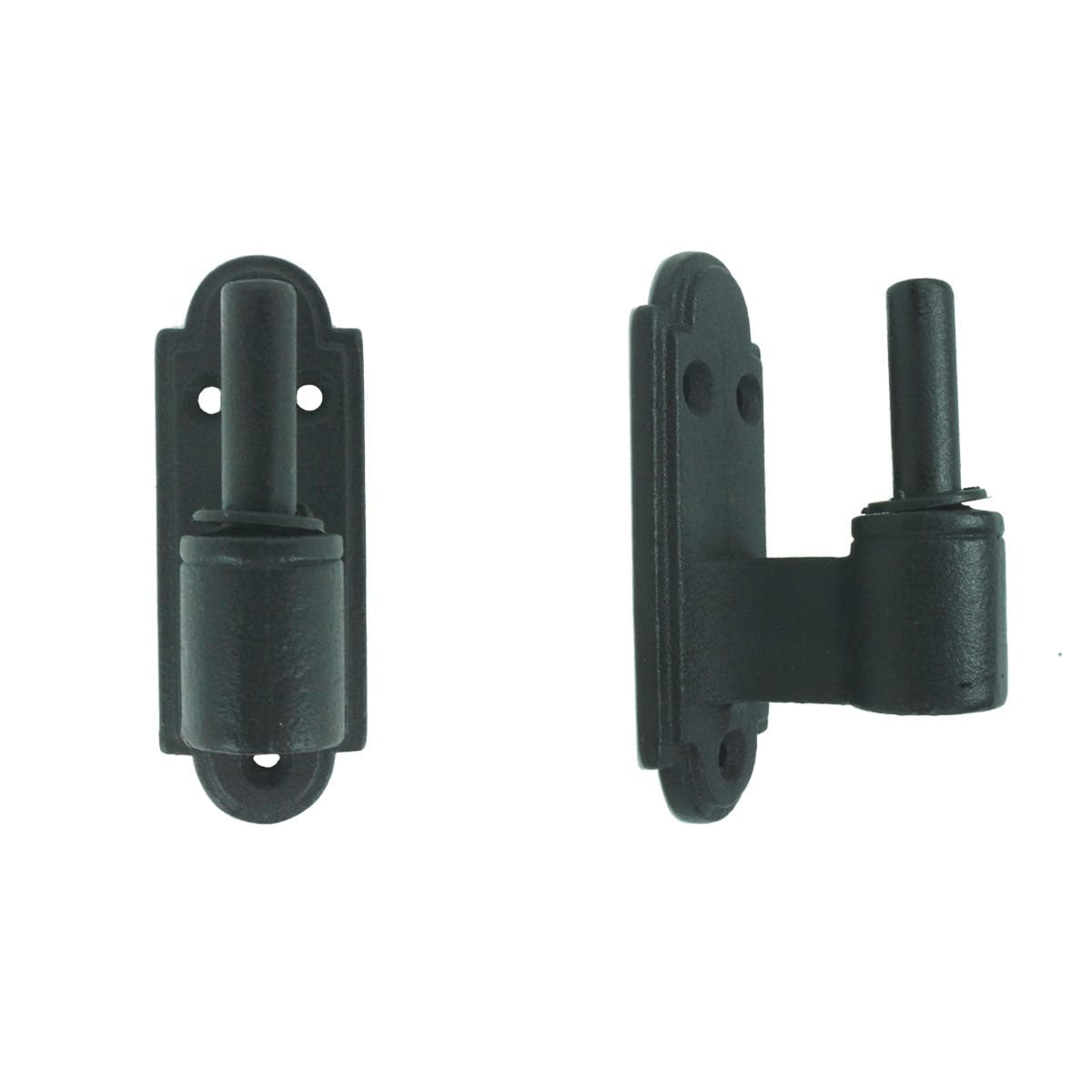

1-1/2" Inch Offset

Generally used with the 088510 (Style 1 NY hinge)
Dimensions: 3.375" × 1.25" × 2"

1.875" Inch Offset

Generally used with the 088514 (NY New Construction hinge)
Dimensions: 3.375" × 1.25" × 2"

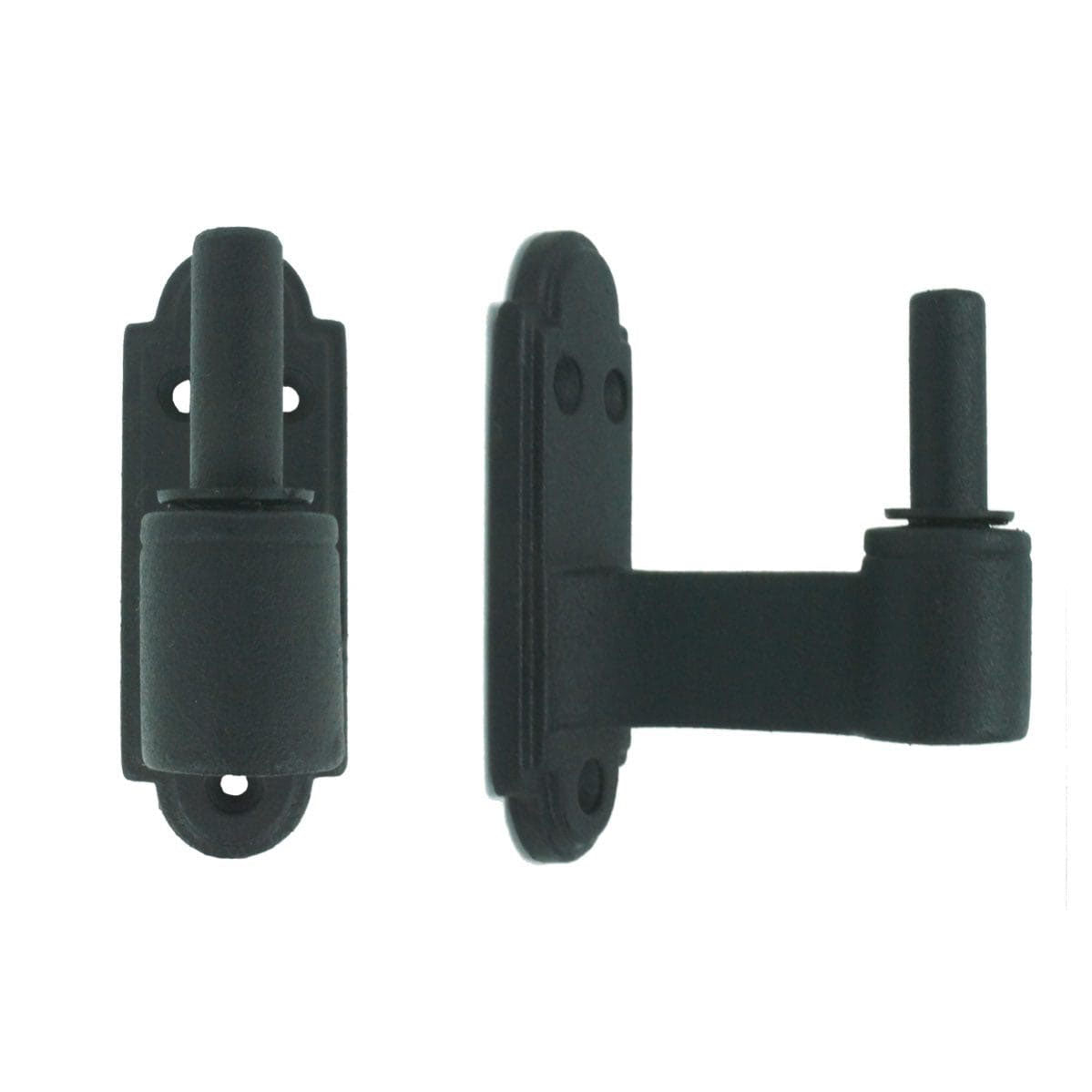

2-1/4" Inch Offset

Generally used with the 088512 (Style 2 NY hinge ) or 088514 (NY New Construction hinge)
Dimensions: 3.375" × 1.25" × 2.675"

If you are using this item with a strap hinge (088625 through 088628), you will need an adapter, part #88900

Click here for Strap Hinge Pintle Adapter (088900)

Screws included
Sold individually
