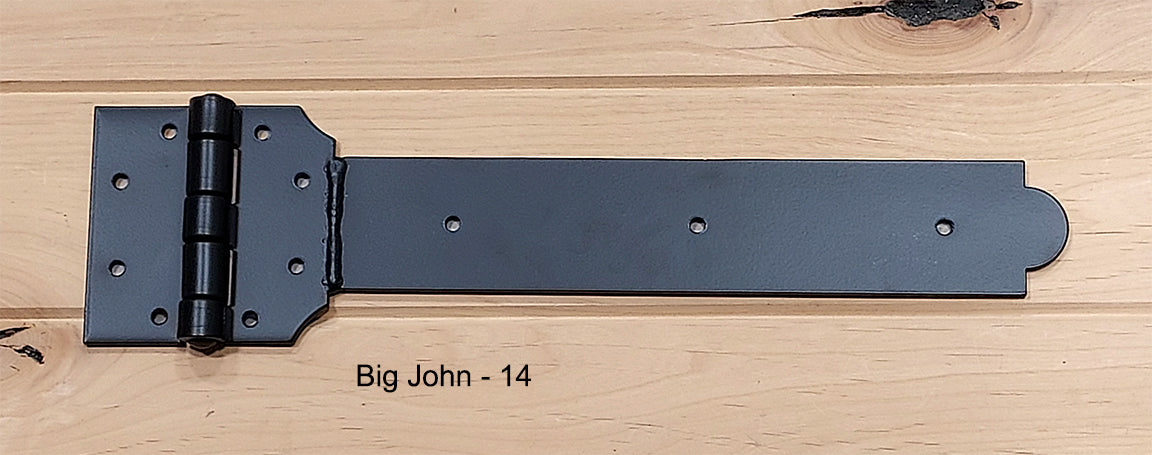

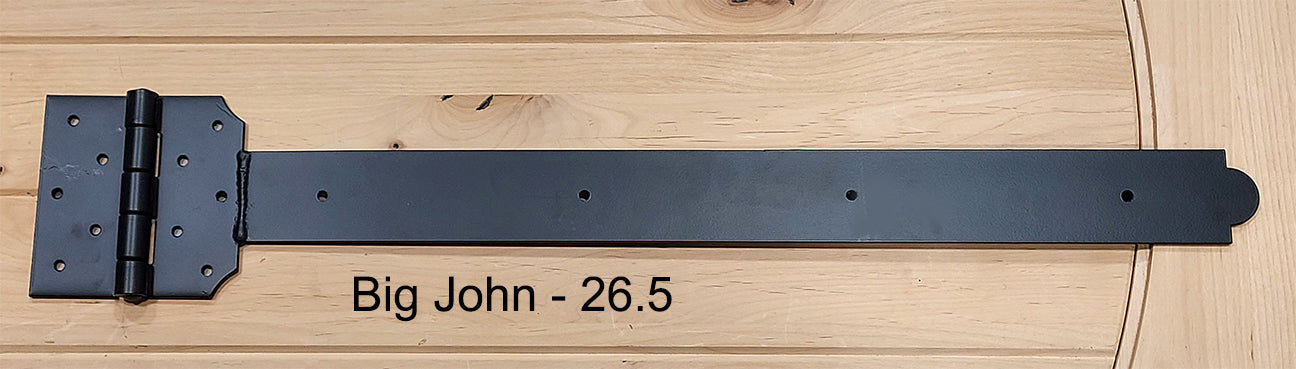

Super Heavy Duty Strap Hinge T-Hinge - Decorative Strap Hinge - "Big John" 3 Sizes

F

$ 74.50
SKU: F-HO-Pr-SH-HD-BIGJOHN-14

Share:

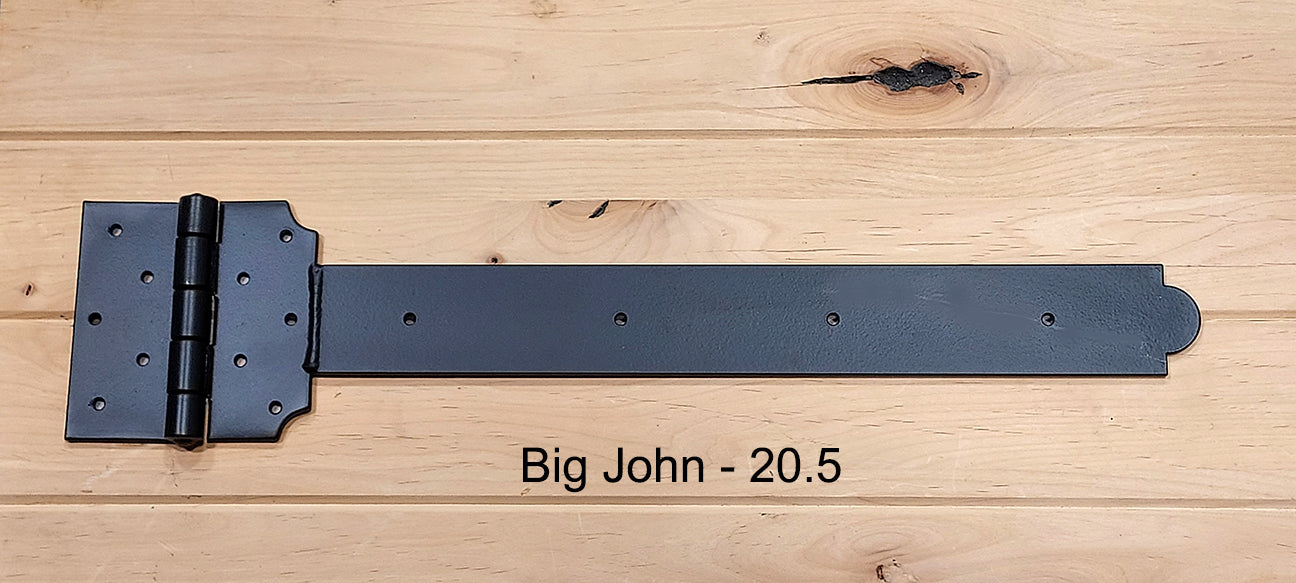

Our "Big John" is a Heavy Duty Strap Hinge or T-hinge, that is commonly used on large doors and gates. They have holes for use with lag type screws.

Product Specifications:

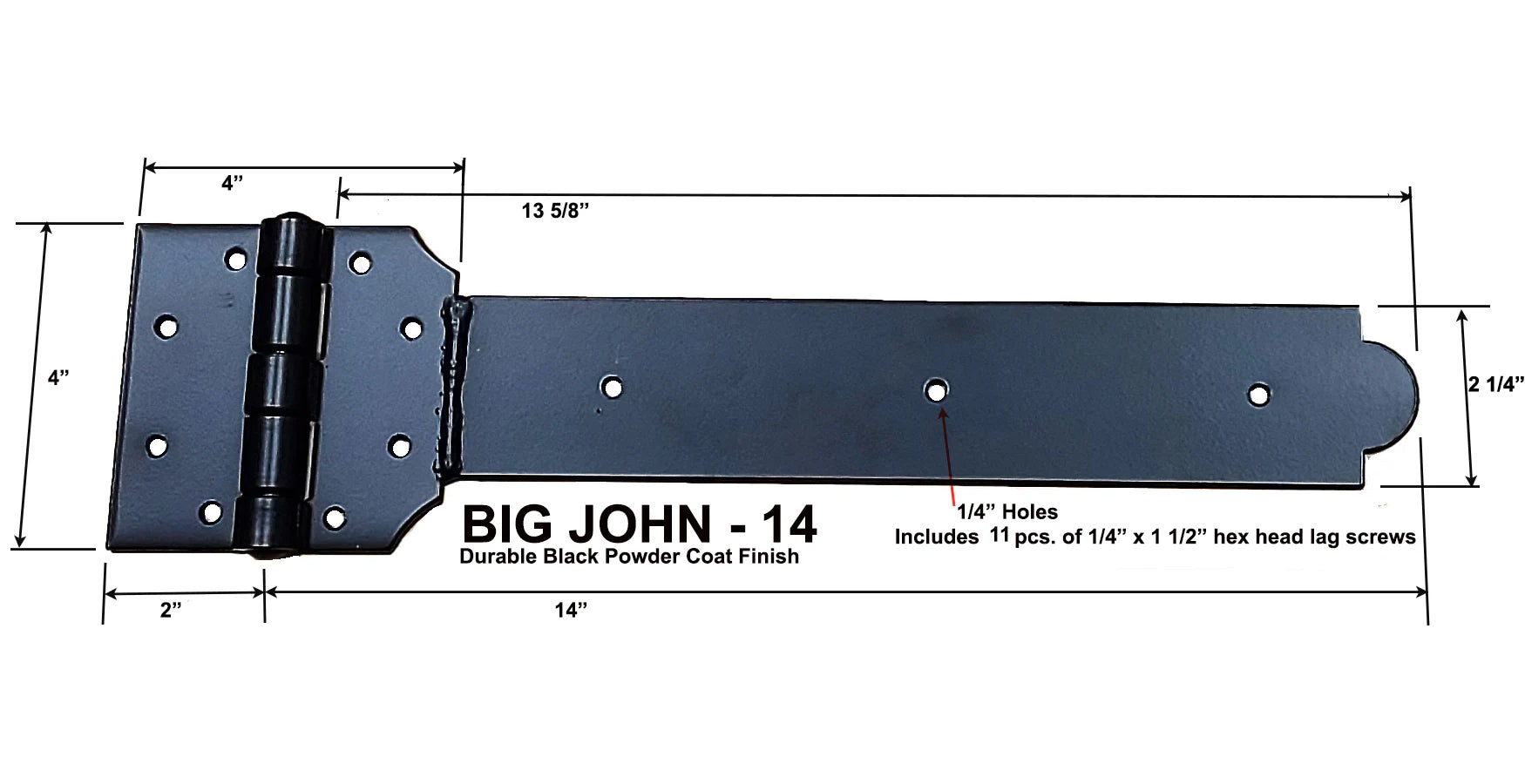

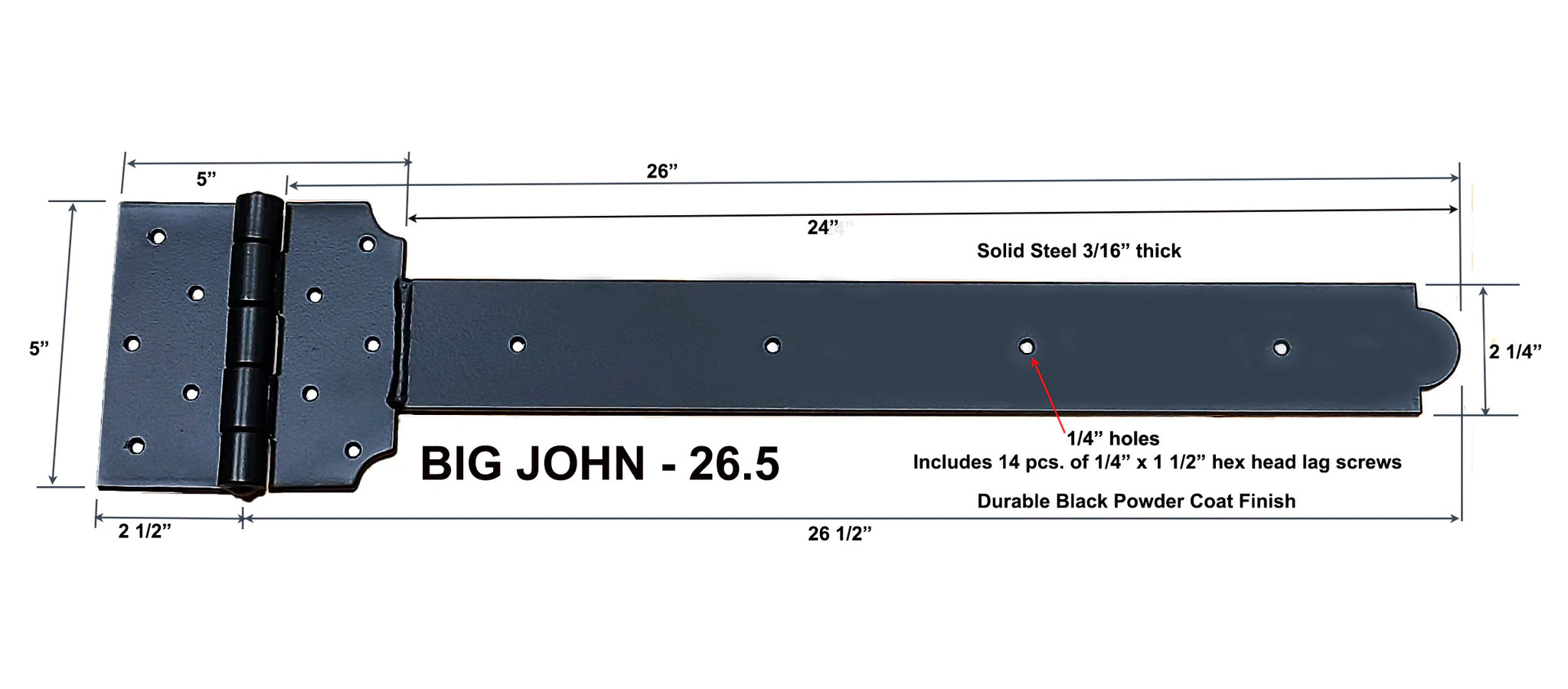

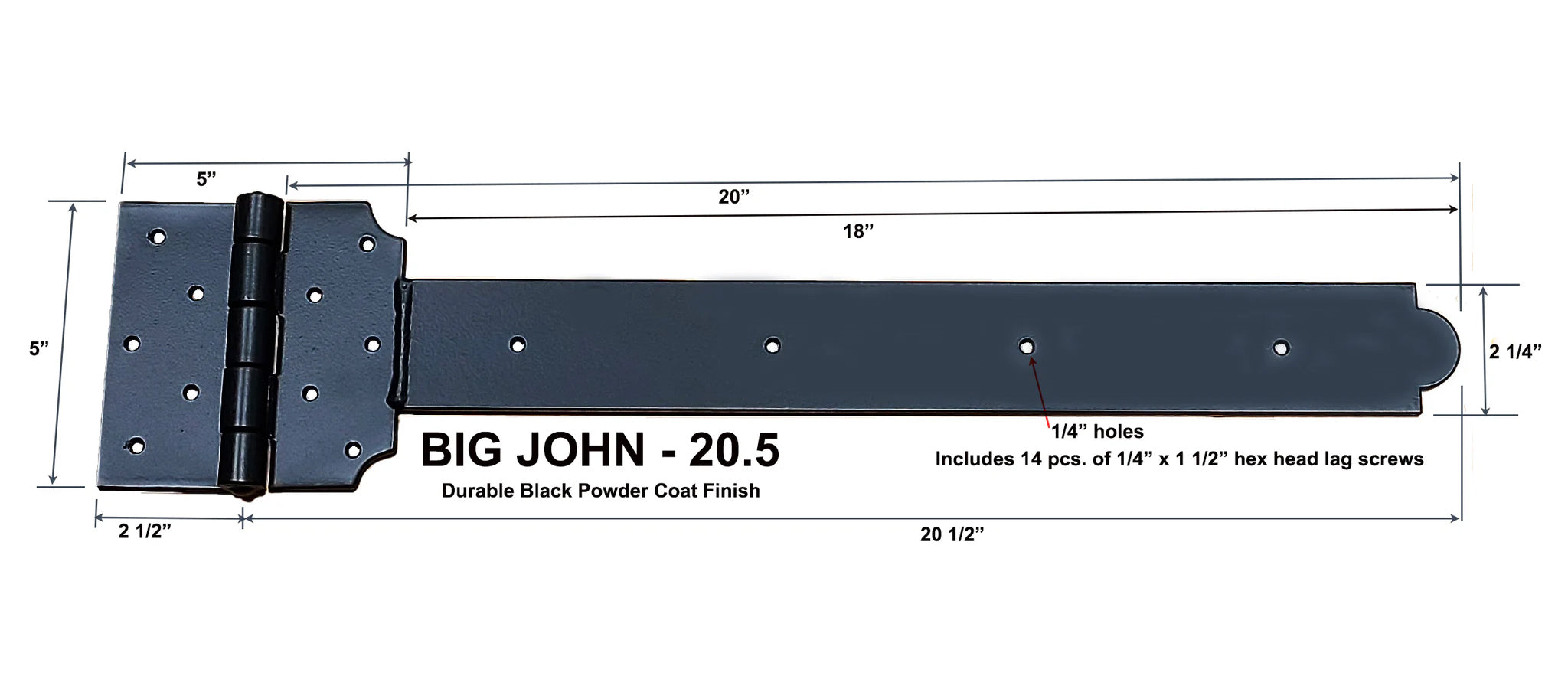

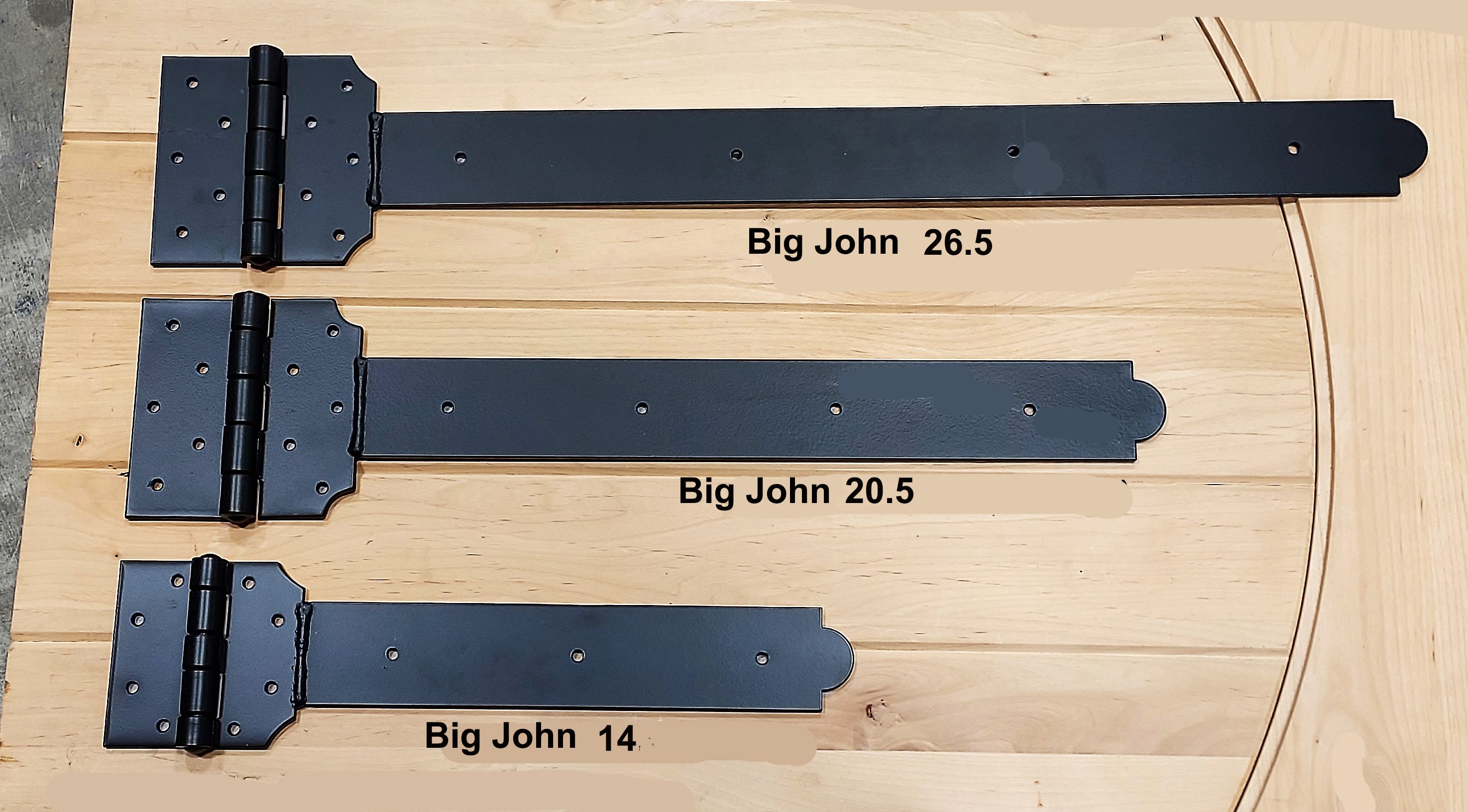

  • Size: Three sizes available (see full details in images)
  • Can be used in surface mount or jamb mount applications
  • Made of heavy gauge steel: 3/16" thick
  • 26.5 hinge weighs 5 lbs.,  20.5 hinge weighs 4.2 lbs., 14 hinge weighs 2.5 lbs.
  • Tight Knuckle alleviates sagging
  • Finish: Black Powder Coated

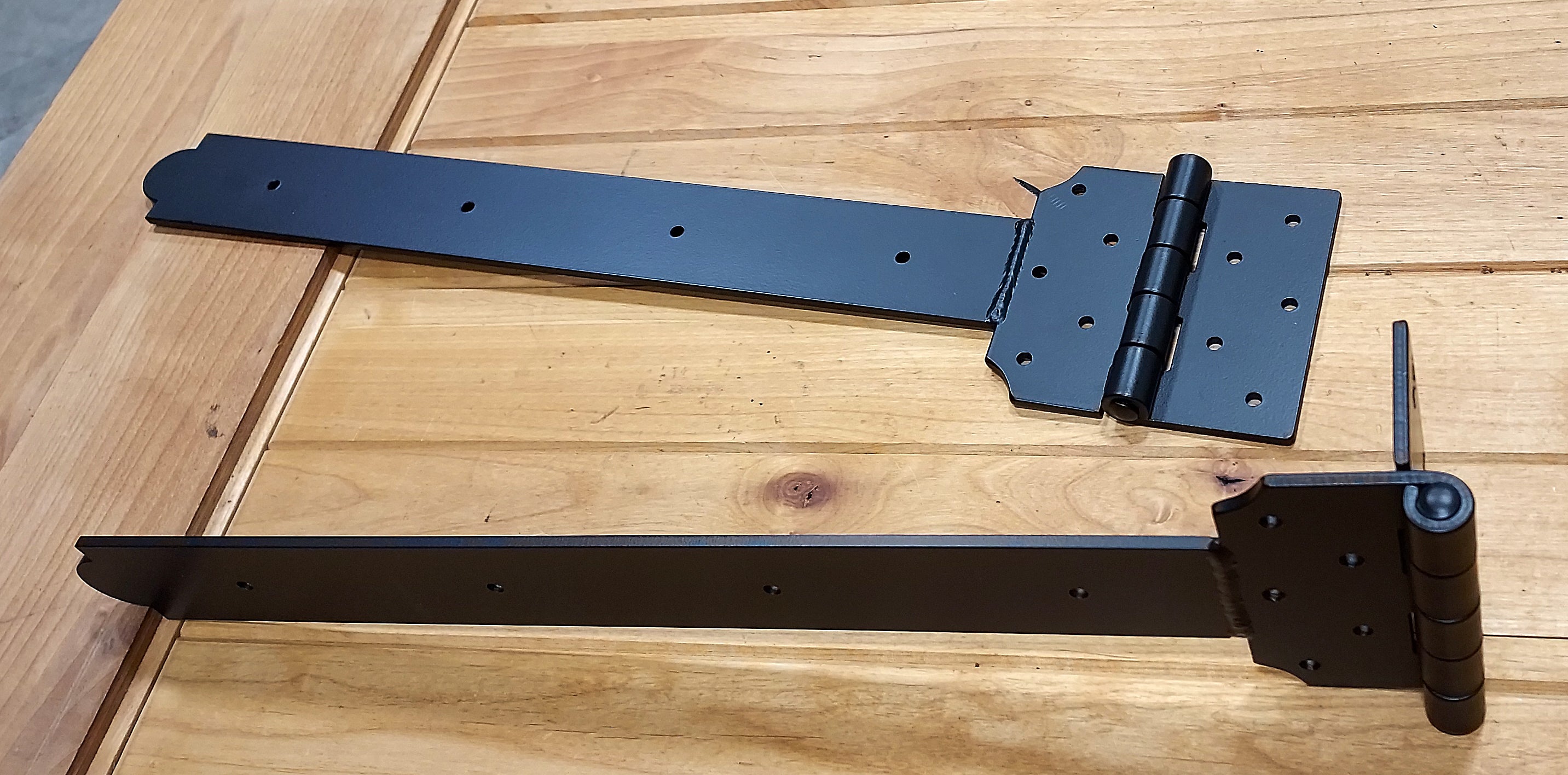

  • Works for right or left hand applications
  • Ornamental design - Barn Door style finials
  • Matching finish lag screws are included for mounting  (1/4" x 1.5" Hex Head Lag Screws)
  • Est weight load range for Big John 26.5 and Big John 20.5: 150 to 175 lbs. (using two hinges)
  • Est. weight load range for Big John 26.5 and Big John 20.5: 200 to 250 lbs.(using three hinges)
  • Est weight load range for Big John 14: 100 to 150 lbs. (using two hinges)
  • Est weight load range for Big John 14: 125 to 175 lbs. (using three hinges)
  • Sold Individually


(all images are the exclusive property of Wild West Hardware and covered under copyright laws)
